MCFF Series Metric Hydraulic Multi Coupling
Connecting multiple hydraulic lines individually can take time and increase the risk of connection errors, especially on machines that require frequent attachment changes. A hydraulic multi coupling allows several lines to be connected or disconnected through a single coupling mechanism.

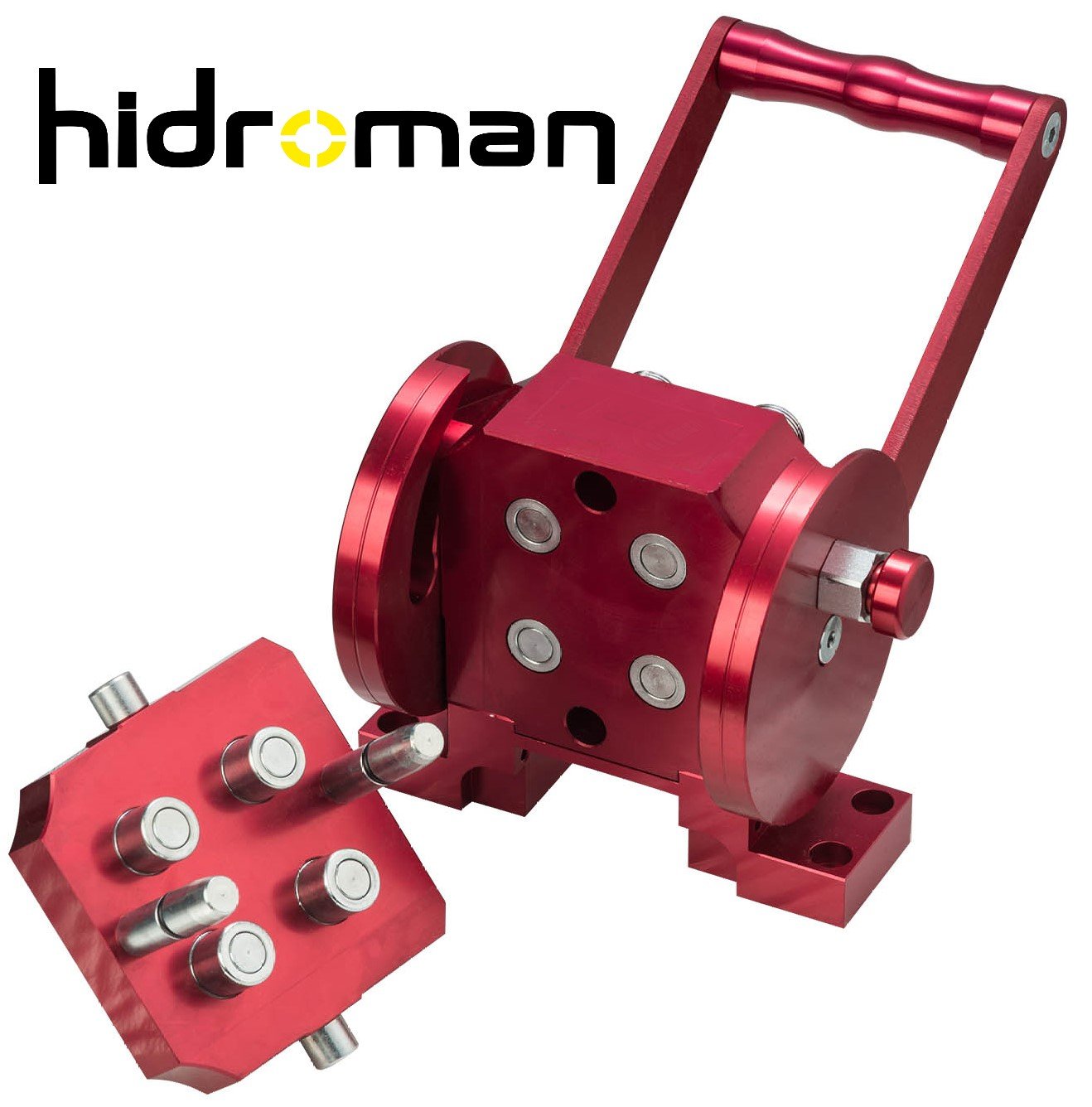

Hidroman's MCFF series metric flat-face hydraulic multi couplings are designed to connect multiple couplings in one operation. A lever mechanism facilitates connection and disconnection, while the PIN/CAM locking system helps secure the coupling assembly and maintain an organized connection layout.
The series features a flat-face design compatible with ISO 16028. When selecting a suitable configuration, the number of hydraulic lines, operating pressure, flow rate, metric connection dimensions and installation conditions should be considered together.
What Is a Hydraulic Multi Coupling?
A hydraulic multi coupling is a connection system that allows several hydraulic lines to be connected or disconnected together through a single assembly.
Instead of connecting each hose individually, the operator can connect multiple circuits through one mechanism. This arrangement can be particularly useful on machines with interchangeable attachments or equipment requiring several hydraulic connections at the same time.
The MCFF series is designed for applications requiring metric connections and a flat-face multi-coupling arrangement.
Key Features of the MCFF Series
Multiple connections in one operation
The MCFF series allows several couplings to be connected in a single operation. This can simplify repeated connection tasks and improve the organization of hydraulic line connections.
Lever-operated connection and disconnection
A lever mechanism is used to connect and disconnect the coupling assembly. It supports controlled operation when joining or separating multiple hydraulic lines.
PIN/CAM locking system
The PIN/CAM locking mechanism helps secure the coupling assembly in position. Correct alignment and locking are important for safe, reliable operation.
Flat-face connection design
The flat-face valve design helps keep connection surfaces clean and is intended to reduce fluid loss when the coupling is disconnected. Actual performance depends on the operating conditions and correct installation.
Aluminum body with steel automatic couplings
The MCFF series uses an aluminum body and automatic coupling components made from free-machining steel, according to the product specifications.
MCFF Series Technical Specifications
Specification | Product information |
|---|---|
Series | MCFF |
Product type | Metric hydraulic multi coupling |
Compatibility | ISO 16028 |
Valve design | Flat-face |
Body material | Aluminum |
Automatic coupling material | Free-machining steel |
Thread type | Metric |
Seal | Nitrile O-ring (NBR) |
Standard operating temperature | −30°C to +110°C |
Surface treatment | Galvanized with Chrome III passivation |
Heat treatment | Male end |
Connection method | Lever-operated |
Disconnection method | Lever-operated |
Locking system | PIN/CAM |
Connection under pressure | Not possible |
Disconnection under pressure | Not possible |
Special options | Viton, a heat-resistant special spring and polyurethane (PU) are listed; confirm the exact configuration |
Technical note: The available product page does not provide the maximum operating pressure, flow per line, number of connections or detailed size options. These values must be verified using the relevant technical documentation. Seal and spring options must also be checked for temperature and fluid compatibility.
Applications of Hydraulic Multi Couplings
The MCFF series may be considered for equipment requiring several hydraulic lines to be connected in an organized manner. The product page lists the following application sectors:
Construction machinery and equipment
Industrial manufacturing systems
Defense and aerospace applications
Mobile hydraulics
Chemical industry
Medical equipment
Mining machinery and equipment
Suitability for a specific application depends on the required pressure, flow rate, hydraulic fluid, connection dimensions and applicable industry requirements.
Benefits of a Metric Hydraulic Multi Coupling
Faster connection and disconnection
Connecting multiple hydraulic lines through one mechanism can simplify the process compared with connecting each hose individually. This is especially useful where equipment and attachments are changed frequently.
Reduced risk of line mix-ups
A multi-coupling assembly keeps connection points in a defined arrangement. With suitable system design and correct alignment, this can help reduce the risk of connecting hydraulic lines to the wrong ports.
Organized hydraulic hose management
Grouping several hydraulic connections into one assembly helps keep connection points organized and can make equipment changes easier to manage.
Secure locking
The PIN/CAM locking system helps secure the coupling assembly. Operators should verify that the assembly is fully engaged and locked before the hydraulic system is put into operation.
Easier maintenance and equipment changes
For machines that require repeated connection and disconnection, a multi coupling can simplify routine maintenance and attachment changes. The actual benefit depends on the machine design and frequency of use.
MCFF Multi Coupling vs. Couplings That Connect Under Pressure
The MCFF metric multi coupling is designed to connect several hydraulic lines together. However, Hidroman's product page explicitly states that the MCFF series cannot be connected or disconnected under pressure.
If residual pressure remains in the lines during connection or disconnection, the MCFF series should not be selected solely because it provides multiple connections. A different coupling specifically rated for connection or disconnection under pressure may be required.
Always follow the manufacturer's instructions and applicable safe-working procedures when connecting or disconnecting hydraulic lines.
How to Select a Hydraulic Multi Coupling
The following factors should be considered when selecting an MCFF configuration:
Number of lines: Determine how many hydraulic circuits need to be connected simultaneously.
Operating pressure: Check the system's normal and maximum pressures against the coupling's rated limits.
Flow rate: Confirm the required flow per line and acceptable pressure drop.
Metric connection dimensions: Verify thread size, thread profile and mating interfaces.
Fluid and seal compatibility: Confirm that the hydraulic fluid is compatible with NBR or the selected special seal material.
Operating temperature: Use the stated −30°C to +110°C range for the standard configuration and verify any special options separately.
Locking and installation space: Check the available space for lever movement, mounting and PIN/CAM locking.
Connection under pressure: Establish whether the system must be depressurized before the coupling is connected or disconnected.
Before ordering, verify the relevant technical drawing, dimensions and pressure-flow ratings.
MCFF Metric Multi Coupling Solutions from Hidroman
Hidroman's MCFF series metric multi couplings are designed for applications where several hydraulic lines need to be managed through a single connection assembly.
Selecting the correct configuration requires consideration of the number of connections, metric dimensions, operating pressure, flow rate, hydraulic fluid and available installation space.
Contact Hidroman to discuss your metric hydraulic multi coupling requirements. For a technical assessment, provide the hydraulic schematic, connection dimensions, operating pressure and required flow rate per line, if available.
Frequently Asked Questions
What is a metric hydraulic multi coupling used for?
It allows multiple hydraulic lines to be connected or disconnected together through one coupling mechanism, helping make connection changes faster and more organized.
Is the MCFF series compatible with ISO 16028?
Yes. ISO 16028 compatibility is specified on the product page. The exact dimensions and mounting interface should also be confirmed.
Can the MCFF series be connected under pressure?
No. Hidroman's product page specifies that the MCFF series cannot be connected under pressure. Follow the manufacturer's safe-working instructions before connecting the assembly.
Can the MCFF series be disconnected under pressure?
No. The product page specifies that disconnection under pressure is not possible.
What is the operating temperature range?
The stated standard operating temperature range is −30°C to +110°C. Confirm the exact configuration if special seals or spring options are required.
Which industries can use the MCFF series?
The product page lists construction, manufacturing, defense, aerospace, mobile hydraulics, chemical, medical and mining applications. Technical suitability must be confirmed for each application.
What are the maximum pressure and flow ratings?
These values are not specified in detail on the available product page. Consult the relevant technical documentation before selecting the coupling.
