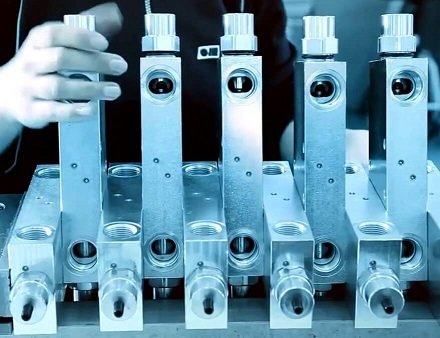

In-Line Hydraulic Valves

In-line hydraulic valves are compact hydraulic components used to control pressure, flow, load, and fluid direction within hydraulic systems. Designed for direct installation into hydraulic lines, these valves are widely used in mobile equipment, agricultural machinery, construction equipment, industrial machinery, and OEM hydraulic systems.

Hidroman provides in-line hydraulic valve solutions for different pressure, flow, connection, and application requirements, helping manufacturers and hydraulic system users select the right valve for reliable system performance.

What Is an In-Line Hydraulic Valve?

An in-line hydraulic valve is a hydraulic control valve installed directly within a hydraulic hose, pipe, or fluid line.

Depending on the valve design and application, an in-line valve can control:

  • Hydraulic pressure
  • Hydraulic flow
  • Load holding
  • Flow direction
  • Pressure sequencing
  • Flow division
  • Actuator movement
  • System protection

Because of their compact design and straightforward installation, in-line hydraulic valves are an effective solution when adding or replacing a control function within an existing hydraulic circuit.

Hidroman In-Line Hydraulic Valve Solutions

Hidroman offers hydraulic valve solutions for different machine and system requirements. The appropriate valve type should be selected according to operating pressure, flow rate, connection type, hydraulic fluid, temperature, and the required control function.

Pressure Control Valves

Hydraulic pressure control valves help regulate or limit pressure within a hydraulic circuit.

They can be used to protect hydraulic components from excessive pressure and to maintain the required operating conditions in applications such as mobile equipment, industrial machinery, hydraulic power units, and OEM systems.

Pressure Sequence Valves

Hydraulic sequence valves are used when hydraulic functions need to operate in a predetermined pressure sequence.

They are suitable for circuits where one actuator or hydraulic function must reach a specific pressure before another function is activated.

Load Holding Valves

Load holding valves help control unwanted movement of hydraulic cylinders and actuators when a load must remain in position.

They are commonly considered for lifting equipment, mobile machinery, construction equipment, and other hydraulic applications where controlled load movement is important.

Flow Control Valves

Hydraulic flow control valves regulate the amount of hydraulic fluid passing through a circuit.

By controlling flow, they can help adjust the operating speed of hydraulic cylinders and motors. This makes them useful in applications requiring controlled actuator movement.

Flow Divider Valves

Hydraulic flow divider valves distribute hydraulic flow between two or more circuits.

They can be used when multiple hydraulic functions need to receive a controlled portion of the available pump flow.

Hydraulic Check Valves

Hydraulic check valves allow hydraulic fluid to flow in one direction while restricting reverse flow.

They are commonly used to control flow direction, protect hydraulic circuits, and maintain specific operating conditions within a hydraulic system.

Depending on the application, different check valve configurations and cracking pressures may be required.

Rotary Hydraulic Valves

Rotary hydraulic valve solutions can be used in applications where hydraulic connections must accommodate movement or rotation.

They may be suitable for mobile equipment, rotating machinery, and specialized hydraulic applications where conventional fixed connections are not sufficient.

Applications of In-Line Hydraulic Valves

In-line hydraulic valves are used across a wide range of hydraulic applications because of their compact design and flexible installation options.

Typical applications include:

  • Construction equipment
  • Mobile hydraulic machinery
  • Agricultural machinery
  • Tractors and agricultural implements
  • Truck-mounted equipment
  • Dump bodies and lifting systems
  • Hydraulic attachments
  • Mining equipment
  • Industrial machinery
  • Hydraulic power units
  • Material handling equipment
  • Custom machinery
  • OEM hydraulic systems

For OEM applications, in-line valves can be integrated with hydraulic cylinders, pumps, motors, hoses, filters, manifolds, and hydraulic power units as part of a complete hydraulic system.

Steel and Aluminum In-Line Hydraulic Valves

The valve body material should be selected according to the application and operating environment.

Steel hydraulic valves are commonly preferred for demanding applications where mechanical strength and durability are important.

Aluminum hydraulic valves can provide a weight advantage in mobile hydraulic equipment where reducing overall system weight is a priority.

The appropriate material should be determined by considering working pressure, flow rate, temperature, installation environment, hydraulic fluid, and expected operating conditions.

How to Select the Right In-Line Hydraulic Valve

Selecting an in-line hydraulic valve requires more than simply matching the port size.

The following technical parameters should be evaluated:

  1. Maximum Working Pressure

The valve's rated working pressure must be suitable for the hydraulic system's maximum operating pressure.

  1. Flow Rate

The valve must support the required hydraulic flow without creating excessive pressure drop or restricting system performance.

  1. Port Size and Connection Type

Connection standards such as NPT, SAE, BSP, and metric ports should be checked to ensure proper compatibility with the existing hydraulic circuit.

  1. Valve Function

Determine whether the application requires:

  • Pressure control
  • Flow control
  • Load holding
  • Flow direction control
  • Flow division
  • Pressure sequencing

Selecting the correct valve function is essential for proper hydraulic system operation.

  1. Hydraulic Fluid

The valve and seal materials should be compatible with the hydraulic fluid being used in the system.

  1. Operating Temperature

Ambient and hydraulic fluid temperatures can affect valve performance, seal life, and overall system reliability.

  1. Installation Space

The valve's overall dimensions, port orientation, and installation position should be considered before selecting the component.

  1. Application Environment

Mining, agriculture, construction, industrial, and mobile applications can have significantly different operating conditions. Dust, vibration, temperature, moisture, and mechanical loads should therefore be considered during valve selection.

Why Use In-Line Hydraulic Valves?

In-line hydraulic valves provide a practical way to add hydraulic control functions directly into existing hydraulic circuits.

Key advantages include:

  • Compact design
  • Easy installation
  • Direct hydraulic line integration
  • Multiple pressure and flow control functions
  • Flexible application options
  • Suitable for mobile hydraulic systems
  • Convenient maintenance and replacement
  • Easy integration into OEM hydraulic systems

When properly selected and sized, an in-line hydraulic valve can contribute to reliable hydraulic control and efficient machine operation.

In-Line Hydraulic Valves for OEM Applications

For OEM manufacturers, selecting a hydraulic valve should be part of the overall hydraulic system design.

An in-line valve must work correctly with other components, including:

  • Hydraulic pumps
  • Hydraulic motors
  • Hydraulic cylinders
  • Hydraulic hoses
  • Hydraulic piping
  • Hydraulic filters
  • Hydraulic power units
  • Directional control valves
  • Pressure control components

Hidroman approaches hydraulic valve selection as part of the complete hydraulic circuit rather than treating the valve as an isolated component.

For custom machinery and OEM projects, valve selection can be evaluated according to the machine's pressure, flow, actuator requirements, installation conditions, and operating environment.

In-Line Hydraulic Valves for Mobile and Industrial Equipment

Mobile hydraulic systems often require compact components that can withstand vibration, pressure fluctuations, and demanding operating conditions.

In-line hydraulic valves can be used in:

  • Excavators
  • Loaders
  • Agricultural equipment
  • Forestry equipment
  • Mining machinery
  • Truck-mounted hydraulic systems
  • Lifting equipment
  • Industrial machinery

The correct valve configuration depends on the machine's hydraulic circuit and the specific control function required.

Hidroman Hydraulic Valve Solutions

Choosing the right hydraulic valve can directly affect system reliability, component life, maintenance requirements, and machine performance.

Hidroman provides hydraulic system components and engineering solutions for OEM manufacturers, industrial applications, mobile machinery, agricultural equipment, construction equipment, and demanding hydraulic systems.

Our approach focuses on selecting hydraulic components according to actual operating conditions rather than simply matching a product by size.

From hydraulic valves and cylinders to hydraulic hoses, filtration systems and hydraulic power units, Hidroman can evaluate the complete hydraulic circuit and help identify the appropriate solution.

Don't wait for a hydraulic failure. Select the right component before the failure occurs.

For technical information, valve selection, or an application-specific in-line hydraulic valve solution, contact the Hidroman engineering team.
