Hydraulic pipe end forming machine is a machine used to shape and prepare hydraulic pipe ends. This machine is designed to give the desired shape to pipe ends and create connection points. It is generally produced for industrial uses and plays an important role in the correct preparation and installation of pipes.

Hydraulic tube end forming machine has several main functions:

1. **Shaping:** This machine is used to give the desired shape to the pipe ends. For example, it can be used to create seamless pipe ends or tapered ends.

2. **Cutting:** Some hydraulic pipe end forming machines have integrated cutting function for cutting pipe ends. This is important to create pipe ends of the correct length. -Optional

3. **Bending:** Some models can bend the pipe ends to create connections at different angles or shapes. This ensures that the pipelines have a certain structure or configuration. -Optional

4. **Flanging Forming:** Some hydraulic pipe end forming machines can be used to form flanges. Flanges are used to connect or seal pipes with other parts. -Optional

Hydraulic tube end forming machines are often used in industrial environments that require high precision and repeatability. They play an important role in ensuring the reliability and performance of hydraulic systems.

We provide 100% sealing guarantee with our Form Machine, which allows you to make weldless and ferrule connections.

Do not bother with the leakage caused by the ferrule and the source, our solution engineers will design the form machine suitable for you specially for you.

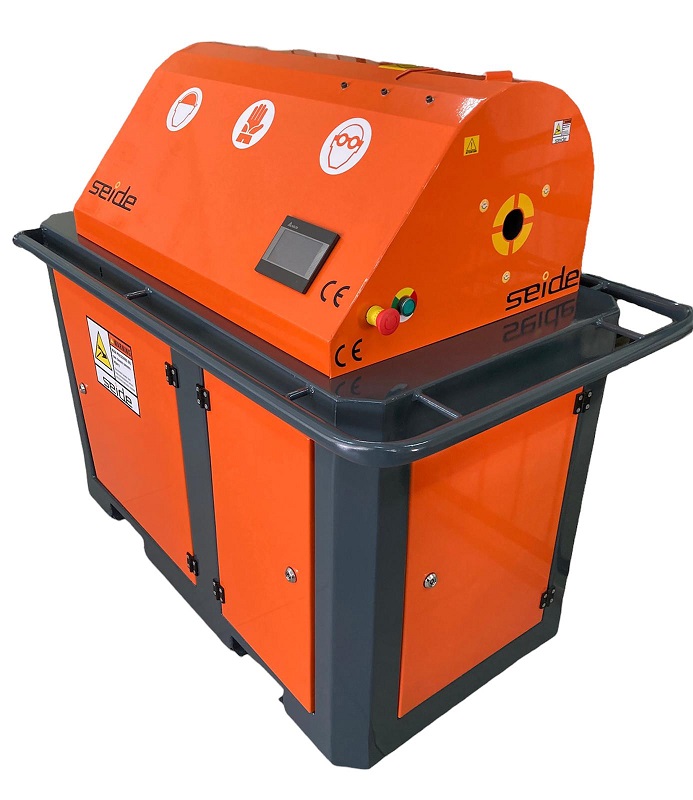

TD15 Metrik Form Machine
Technicial Specifications
24° Form 10mm - 42mm
Form Speed 7 Sn
Nut to Use DIN 2391
Materials to be Processed AISI 316 TI - ST37,4
Dimensions 1280x650x1370 mm
Weight 750kg
Machine Voltage 380 V - 400V
TD15.10 Form Tool Ø 10 mm
TD15.12 Form Tool Ø 12 mm
TD15.14 Form Tool Ø 14 mm
TD15.15 Form Tool Ø 15 mm
TD15.16 Form Tool Ø 16 mm
TD15.18 Form Tool Ø 18 mm
TD15.20 Form Tool Ø 20 mm
TD15.22 Form Tool Ø 22 mm
TD15.25 Form Tool Ø 25 mm
TD15.28 Form Tool Ø 28 mm
TD15.30 Form Tool Ø 30 mm
TD15.35 Form Tool Ø 35 mm
TD15.38 Form Tool Ø 38 mm
TD15.42 Form Tool Ø 42 mm

seide form

Metric Forming Process for Hydraulic Pipe End

Hydraulic pipe metric forming is a process performed to give the desired shape and size to metric pipe ends. This process makes pipe ends suitable for creating connections or assembling pipelines. Metric forming is generally required for pipes used in industrial hydraulic systems.

The process usually includes these steps:

1. **Preparation:** Before the process, the pipe must be cut to the appropriate length and cleaned. The pipe is placed in a machine suitable for the process.

2. **Forming:** A forming mold is used to give the desired metric form to the end of the pipe. This mold shapes the outer surface of the pipe and creates the connection points. The forming process is generally carried out using hydraulic presses or special forming machines.

3. **Sealing and Control:** After the forming process, it is important to check the pipe carefully and ensure sealing. There should be no defects or cracks on the outer surface of the pipe. Additionally, it is checked whether the connection points are of the correct size and shape.

Hydraulic pipe metric forming process ensures accurate preparation and assembly of pipes. This increases the reliability and performance of hydraulic systems. The process requires precision equipment and experienced operators and is usually performed in industrial workshops.

form makinası

boru ucu form makinası

Application Dimensions ;

Ø10x1 – Ø10x1,5 – Ø10x2

Ø12x1 – Ø12x1,5 – Ø12x2 – Ø12x2,5

Ø15x1 – Ø15x1,5 – Ø15x2 – Ø15x2,5

Ø16x1,5 – Ø16x2 – Ø16x2,5 – Ø16x3

Ø18x1,5 – Ø18x2 – Ø18x2,5

Ø20x2 – Ø20x2,5 – Ø20x3

Ø22x1,5 – Ø22x2 – Ø22x2,5

Ø25x2 – Ø25x2,5 – Ø25x3

Ø28x2 – Ø28x2,5 – Ø28x3

Ø30x2,5 – Ø30x3 – Ø30x3,5 – Ø30x4

Ø35x2,5 – Ø35x3 – Ø35x3,5 – Ø35x4

Ø38x3 – Ø38x3,5 – Ø38x4 – Ø38x5

Ø42x3 – Ø42x4 – Ø42x5

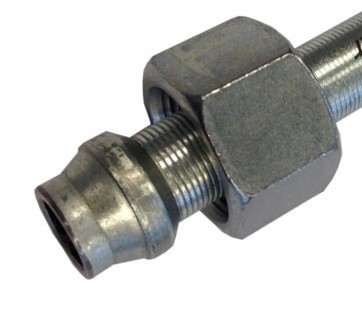

SeideForm application is a very fast, low cost and high sealing capability method that is made with the SeideForm Machine without using ferrules or welding.

SeideForm application has been tested dynamically and statically with the pressures of 2 times the working pressure of the pipes in pipes between Ø10mm pipe diameter and Ø42mm pipe diameter and its sealing capability has been observed.

In addition, a blasting test with a diameter of Ø16x2mm pipe at 1200 Bar pressure was also performed.

Seide Form Application Advantages

Excellent Sealing Capability

Time and Labor Savings With Fast Manufacturing

Suitable for Standard Connection

No Need To Use Spacers

Cost Advantage

Quick service

Flow Comfort

High Pressure and Peak Pressure Resistance

Ease of Installation and Maintenance

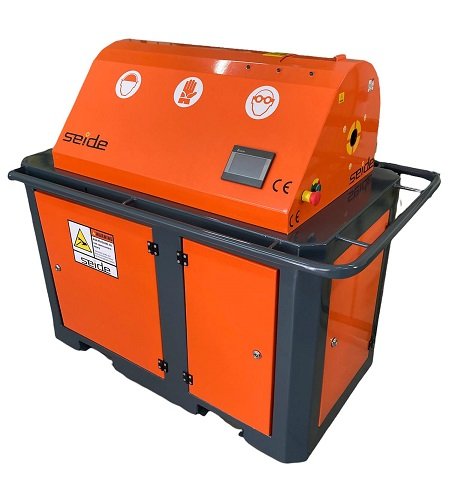

Dimensions / Weight:

Height: 1400mm

Width: 650mm

Length: 1200mm

Weight: 735kg

Similar Technologies,

WALFORM MACHINE

Walform machine is a type of pipe forming machine used to shape pipe fittings. They are frequently used in high-pressure pipelines, especially in hydraulic and pneumatic systems. These machines are used to clamp pipe ends, gaskets and other fittings into the pipe, creating a leak-proof joint. The Walform technique ensures a pressure-resistant and safe installation of the pipeline. This technique does not require welding during pipeline assembly, which speeds up the assembly process and reduces costs.

Walform machines are designed for a specific joint type and size and usually include a set of interchangeable dies. These molds provide the predetermined form for different pipe diameters and connection types. The operator selects the appropriate die and then shapes the pipe ends using the machine.

These machines are often used in industrial settings and are important for the installation and maintenance of hydraulic systems, oil and gas lines, liquid handling systems and similar applications. Walform technology is a widely preferred method for creating reliable and leak-proof connections.

Unlike the known Walform technology, the Seide form machine does not use special nuts or spacers. This will provide you with a cost advantage as it eliminates the use of consumables.

Voss Forming Machine

Voss Forming Machine is a special pipe forming machine used to shape fittings in pipelines. VOSS form technology is frequently used in the assembly of high pressure pipelines used in hydraulic and pneumatic systems. This technology allows pipelines to be installed quickly and reliably, while not requiring welding.

VOSS form machines are designed for a specific diameter and connection type of the pipeline. The machine uses a specific die to shape pipe ends or fittings. These molds provide the predetermined form for different pipe diameters and connection types. The operator selects the appropriate die and then shapes the pipe ends using the machine.

VOSS form machines are often used in industrial environments and are important for the assembly and maintenance of hydraulic systems, oil and gas lines, liquid handling systems and similar applications. VOSS form technology is a widely preferred method for creating reliable, leak-proof and high-pressure connections. This speeds up the pipeline installation process and reduces costs.

Unlike the known Voss Form technology, the Seide form machine does not use special nuts or spacers. This will provide you with a cost advantage as it eliminates the use of consumables.
