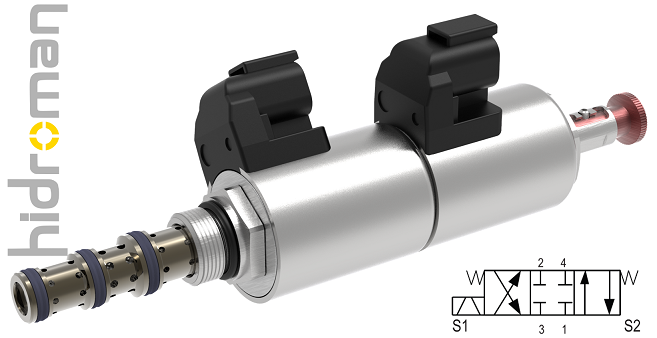

Hydraulic CARTRIDGE Valve

Hydraulic CARTRIDGE Valve

Hydraulic CARTRIDGE Valve

Agenda

ØBenefits of CARTRIDGE design

ØProduct highlights

ØComparison with competitors

ØTechnical data

ØOperating limits & Pressure drop

ØOrdering code

ØCoil installation

ØARGO-HYTOS high quality CARTRIDGE design

ØSelenoids

ØProduct location in ARGO-HYTOS website

ØDouble coil valve ready for the market!

ØDiscussion

Max. flow 30 l/min

Max. pressure 350 bar

Standard interchangeable coil C19B* none from SD*-A*/H* valves

In-Line SB plate available in product portfolio

High operating limits

&

Low pressure drop

2 spool types available

 Optional manaul override

with locking function

HNBR/FPM seals

Floating Cage for Spool Valves (Patented) compensates misalignment

of the cavity or too high tightening torques of the cartridge

Polyurethane seal rings

  - back-up ring and O-Ring as one unit

    - High resistance to twisting, Easy assembly

    - Long service life

    - 10 Mio cycles lifetime guaranty

ARGO-HYTOS Spool cartridges are having all functional parts:

  - hardened and with fine grinding surface (spool) and honed housings

  - This results in best low leakage performance

TIP!
ARGO-HYTOS Spool Valves achieve similar leakage results as some of the „Poppet Valves“
in market.

Selenoids

  • High Variety of connectors
  • Superior metal shell
  • Strong electromagnetic force
  • High coil and actuator service life
  • High Quality Materials
  • High water ingress Tightness (Higher than IP69K)
