Concrete Pump Hose
High-Pressure Concrete Pump Hose for Concrete, Mortar and Plaster
A concrete pump hose is a heavy-duty industrial hose designed to transfer concrete, mortar, and plaster through concrete pumping and delivery systems.
Concrete transfer applications expose hoses to high pressure, abrasive materials, mechanical movement, impact, and demanding jobsite conditions. Choosing the right concrete delivery hose is therefore critical for safe operation, reliable material flow, and long service life.
Hidroman offers the BETON 85 concrete pump hose for demanding construction and concrete transfer applications. The hose is specified for 85 bar working pressure and 200 bar burst pressure, with a temperature range of -40°C to +70°C.
BETON 85 Concrete Hose Features
The BETON 85 series is designed for high-pressure transfer of abrasive construction materials.
Key features include:
- Designed for concrete pumping applications
- Suitable for concrete, mortar, and plaster
- Heavy-duty construction
- 85 bar / approximately 1,233 psi working pressure
- 200 bar / approximately 2,901 psi burst pressure
- Operating temperature from -40°C to +70°C / -40°F to +158°F
- Highly abrasion-resistant inner tube
- NBR/CBR rubber inner tube
- Four high-strength steel wire reinforcement layers
- Abrasion-resistant outer cover
- Ozone resistant
- Weather resistant
- Black cover
- Available from 2" through 6" nominal sizes
- DIN 53516 abrasion resistance specification
- Designed for demanding construction applications
Concrete Pump Hose Applications
Concrete pump hoses are used wherever concrete and other abrasive construction materials must be transferred under pressure.
Typical applications include:
- Concrete pumps
- Concrete pumping systems
- Ready-mix concrete operations
- Construction jobsites
- Concrete delivery systems
- Mortar pumping
- Plaster transfer
- Tunnel construction
- Underground construction
- Infrastructure projects
- Large-scale construction projects
For high-pressure concrete pumping, the hose must be selected according to pump pressure, material characteristics, hose diameter, bend radius, connection type, and installation conditions.
Why Is Abrasion Resistance Important in Concrete Hoses?
Concrete, mortar, and plaster can contain abrasive aggregates and particles that continuously contact the inside of the hose.
This makes abrasion resistance one of the most important performance characteristics when selecting a concrete pump hose.
The BETON 85 hose uses a highly abrasion-resistant NBR/CBR rubber inner tube and a four-layer steel wire reinforcement structure. The outer cover is designed to resist abrasion, ozone, and weathering.
BETON 85 Concrete Hose Specifications
| Product | Size | Nominal ID | OD | Working Pressure | Burst Pressure | Min. Bend Radius |
|---|---|---|---|---|---|---|
| BETON 85-50-10 | 2" | 50.8 mm | 70 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | 508 mm |
| BETON 85-65-11 | 2-1/2" | 63.5 mm | 88 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | 635 mm |
| BETON 85-75-11.5 | 3" | 76.2 mm | 102 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | 762 mm |
| BETON 85-80-13 | 3-1/4" | 80 mm | 106 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | Not specified |
| BETON 85-100-14 | 4" | 101.6 mm | 130 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | 1016 mm |
| BETON 85-127-14 | 5" | 127 mm | 155 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | 1270 mm |
| BETON 85-152-16 | 6" | 152.4 mm | 184 mm | 85 bar / 1,233 psi | 200 bar / 2,901 psi | 1524 mm |
The 3-1/4" model does not have a minimum bend radius specified in the current source data, so no value has been estimated.

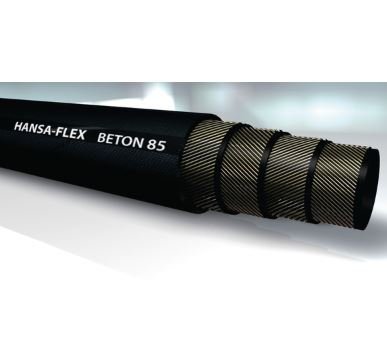

Concrete Pump Hose Construction
Abrasion-Resistant Inner Tube
The inner tube is made from highly abrasion-resistant NBR/CBR rubber designed for the demanding conditions created by concrete, mortar, and plaster transfer.
Steel Wire Reinforcement
Four layers of high-strength steel wire reinforcement provide the mechanical structure required for high-pressure concrete transfer.
Durable Outer Cover
The outer cover is made from synthetic rubber designed to resist abrasion, ozone, and weathering. This helps protect the reinforcement from demanding jobsite conditions.
How to Choose a Concrete Pump Hose
Choosing the right concrete pump hose requires more than selecting the correct diameter.
Working Pressure
The hose working pressure must be appropriate for the maximum pressure generated by the concrete pumping system.
The BETON 85 series is rated at 85 bar / approximately 1,233 psi working pressure and 200 bar / approximately 2,901 psi burst pressure.
Material Abrasion
The type and aggregate content of the concrete or mortar affect hose wear. Highly abrasive materials require a hose with a suitable abrasion-resistant inner tube.
Hose Diameter
The inside diameter should be selected according to the pump, required flow rate, material characteristics, and system design.
Bend Radius
The hose should never be bent below its specified minimum bend radius.
Excessive bending can damage the reinforcement and reduce the service life of the hose.
Temperature
The BETON 85 operating temperature range is specified as -40°C to +70°C (-40°F to +158°F).
Concrete Delivery Hose Safety
Concrete pumping systems operate under high pressure. A damaged hose can present a serious safety risk.
Before each use:
- Inspect the outer cover.
- Check for cuts, cracks, bulges, and excessive wear.
- Inspect hose connections and couplings.
- Verify the operating pressure.
- Check that the hose is not kinked or excessively bent.
- Avoid twisting the hose.
- Use compatible couplings and fittings.
- Replace damaged or severely worn hoses.
- Follow the equipment manufacturer's safety procedures.
The condition of the hose should be monitored throughout its service life, particularly in high-cycle concrete pumping applications.
Concrete Hose for Construction and Infrastructure
Concrete pumping is widely used in construction, infrastructure, tunneling, underground construction, and large-scale concrete placement.
In these applications, the hose must withstand a combination of high pressure, abrasive material, mechanical movement, and challenging environmental conditions.
The BETON 85 series is designed around these demanding requirements, with a heavy-duty reinforced structure and abrasion-resistant inner tube.
Hidroman Concrete Pump Hose Solutions
Hidroman provides industrial hose solutions for construction, mining, hydraulic, pneumatic, and demanding fluid-transfer applications.
The BETON 85 series provides a high-pressure concrete delivery solution for transferring concrete, mortar, and plaster where abrasion resistance and pressure performance are essential.
Contact Hidroman for technical information, concrete pump hose selection, and project-specific hose requirements.
Frequently Asked Questions
What is a concrete pump hose?
A concrete pump hose is a heavy-duty hose used to transfer concrete, mortar, or plaster through a concrete pumping system.
What is the working pressure of the BETON 85 hose?
The BETON 85 hose is specified for 85 bar, approximately 1,233 psi, working pressure.
What is the burst pressure?
The specified burst pressure is 200 bar, approximately 2,901 psi.
What materials can the BETON 85 hose transfer?
The product is specified for concrete, mortar, and plaster.
What sizes are available?
The listed BETON 85 range includes 2", 2-1/2", 3", 3-1/4", 4", 5", and 6" sizes.
Why does a concrete pump hose need an abrasion-resistant inner tube?
Concrete and mortar can contain abrasive aggregates that wear the inside of the hose during continuous pumping. An abrasion-resistant inner tube helps improve hose durability in these applications.
What temperature range is the BETON 85 hose rated for?
The specified operating temperature range is -40°C to +70°C (-40°F to +158°F).
