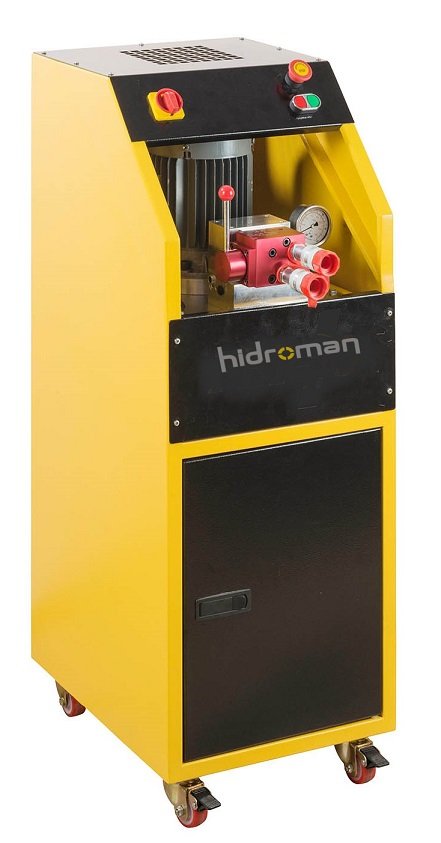

HP700EHP 700 Bar Portable High-Pressure Hydraulic Power Unit

Portable Hydraulic Power for High-Pressure Applications

High-pressure hydraulic applications require a power source that matches the connected equipment's pressure, flow and control requirements. In maintenance, installation, positioning and specialized machinery applications, choosing the right hydraulic power unit is essential for reliable operation and safe equipment integration.

Hidroman's HP700EHP series is an electric high-pressure hydraulic power unit with an adjustable pressure range of 0–700 bar. Its wheeled cabinet design is intended to make the unit easier to move between suitable work areas.

The unit features a dual-speed radial piston pump and supports single-acting and double-acting applications when configured with compatible hydraulic circuits and connections.

Key Features of the HP700EHP Series

Adjustable Pressure up to 700 Bar

The HP700EHP series offers an adjustable pressure range of 0–700 bar. This makes it a candidate for applications requiring a high-pressure hydraulic power source.

A pressure of 700 bar is equivalent to 70 MPa or approximately 10,153 psi.

The operating pressure must be set according to the connected equipment's approved limits. A power unit rated for up to 700 bar does not mean every component in the connected circuit is suitable for that pressure.

Dual-Speed Radial Piston Pump

The unit uses a dual-speed radial piston pump. Depending on operating conditions and the hydraulic circuit, a dual-speed design can support different stages of hydraulic operation.

The reviewed product information does not specify flow rates at different pressure stages. Required oil volume and cycle time should therefore be confirmed for the intended application.

Single-Acting and Double-Acting Operation

The HP700EHP series is described as suitable for single-acting and double-acting hydraulic applications when configured appropriately.

  • Single-acting applications: Hydraulic pressure produces movement in one direction. Return movement depends on the connected equipment's design, such as a spring or external load.

  • Double-acting applications: A compatible hydraulic circuit directs pressure to produce movement in both directions.

Confirm the valve arrangement, port configuration and control method before connecting the unit to a cylinder or other hydraulic equipment.

Portable Wheeled Cabinet

The wheeled cabinet design is intended to simplify movement between suitable maintenance and installation locations. This can be useful where a fixed hydraulic power source is not practical.

The unit's weight, dimensions and transport requirements should be verified in the latest technical documentation.

Pressure Safety Feature

The product description identifies a pressure safety feature. This must be considered alongside correct pressure settings, suitable connections and safe operating procedures.

A pressure safety feature does not replace proper component selection, hose inspection, system maintenance or operator safety procedures.

Technical Specifications

SpecificationHP700EHP series
Product typeElectric high-pressure hydraulic power unit
Maximum adjustable pressure700 bar
Pressure adjustment range0–700 bar
Pump typeDual-speed radial piston pump
Operating configurationSingle-acting or double-acting, as configured
DesignPortable, wheeled cabinet
Pressure safety featureIdentified in the product description

Technical note: The reviewed page does not specify motor power, supply voltage, reservoir capacity, flow rate, weight, dimensions or connection standards. Confirm these details with Hidroman before ordering.

Applications for a 700 Bar Portable Hydraulic Power Unit

When the pressure, flow and connection requirements are met, the HP700EHP series can be evaluated for various high-pressure hydraulic applications.

Construction Equipment Maintenance and Repair

Some specialized maintenance tools used with construction equipment require an external high-pressure hydraulic source. Selection should be based on the tool's technical specifications and approved operating procedure.

Railway and Train Maintenance

High-pressure hydraulic equipment may be used for certain railway vehicle and component maintenance tasks. Verify the required pressure, oil volume, connection type and equipment compatibility before use.

Mining and Marble Quarries

Specialized equipment used in mining and marble quarry operations may require hydraulic power suited to demanding working conditions. Consider the environment, portability, hose routing and safe operating area.

Bridge and Dam Construction

High-pressure hydraulic systems may support specialized installation, positioning and assembly operations. Each application requires an assessment of load, stroke, flow and safe working requirements.

Shipyards and Industrial Maintenance

Shipyards, manufacturing plants and industrial maintenance teams may require portable hydraulic power for specialized equipment. The power unit must match the connected tool's pressure, flow and connection requirements.

Machine Installation and Precision Positioning

Some machine installation tasks require controlled hydraulic force or movement. The power unit should be evaluated together with the cylinder, valves and measuring equipment, with positioning tolerances and load safety assessed for the specific application.

Search and Rescue Operations

Hydraulic equipment can support selected lifting, separation and positioning tasks during rescue and disaster-response operations. Suitability depends on the equipment's approved application, available power supply and established safety procedures.

How to Select the Right 700 Bar Hydraulic Power Unit

Maximum pressure alone is not enough to determine the correct power unit. Evaluate the following factors:

  • Required pressure: Identify the connected equipment's operating pressure and maximum allowable rating.

  • Required oil volume: Calculate the fluid volume needed for the cylinder or hydraulic tool.

  • Flow rate and cycle time: Confirm that the available flow supports the required movement speed and operating cycle.

  • Single- or double-acting operation: Identify the cylinder type and required valve circuit.

  • Connections: Ensure that hoses, couplings, adapters and ports match the required pressure rating and connection type.

  • Electrical supply: Check motor voltage, frequency and power requirements against the available electrical supply.

  • Portability: Consider the unit's weight, dimensions, wheeled design and work environment.

  • Safety: Check pressure protection, pressure-release procedures, hose condition and operator safety requirements.

Safe Operation at 700 Bar

Hydraulic pressure at 700 bar can cause serious injury and equipment damage. Follow these precautions:

  • Ensure that the power unit, hoses, couplings, adapters, valves and cylinders are all rated for the intended pressure.

  • Never loosen or disconnect fittings while the system is pressurized.

  • Never use your hand to locate a high-pressure leak. Fluid injection injuries require urgent medical attention.

  • Depressurize the system using the approved procedure before maintenance or changing connections.

  • Use appropriate mechanical safeguards for lifting and load-supporting operations.

  • Follow the manufacturer's instructions and workplace safety procedures.

Request Technical Information from Hidroman

If you need a portable hydraulic power source for maintenance, installation or a specialized high-pressure application, consider the HP700EHP series.

For a technical evaluation, provide the connected cylinder or tool model, required pressure, oil volume, single- or double-acting requirement, electrical supply and connection details.

The Hidroman team can help assess the configuration needed for your project.

Contact Hidroman for technical information and a quotation for the HP700EHP 700 bar portable hydraulic power unit.

Frequently Asked Questions

What pressure does the HP700EHP produce?

The product description specifies an adjustable pressure range of 0–700 bar. The operating setting must remain within the approved limits of the connected equipment.

Can it operate a single-acting cylinder?

Yes. The product description lists single-acting operation. The cylinder and power unit must have compatible valve and connection configurations.

Can it be used with a double-acting cylinder?

The product description also lists double-acting operation. Confirm the required hydraulic circuit and connection configuration before ordering.

Is the unit portable?

Yes. The listed version features a wheeled cabinet design. Verify the actual weight and dimensions in the latest technical documentation.

What applications can it support?

Depending on the technical configuration, it may be considered for equipment maintenance, railway maintenance, mining, marble quarries, shipyards, industrial maintenance and specialized machine installation.

What are the motor power and flow rate?

These values are not specified in the reviewed product description. Request the current technical documentation from Hidroman to confirm the required configuration.
